SC25896-SHC

SC25896-SHC

Two-wire current output latch hall

Automotive、2 low-current states are available for selection

SC25896 is manufactured using BCD technology. It is a automotive-grade latch-hall sensor with two-wire current output. This product is designed in accordance with the ISO 26262 standard and supports ASIL-B functional safety level. Its low-current operating mode allows selection between 3.3mA and 6mA levels. The two-wire current interface not only saves wiring costs but also facilitates easy diagnosis of short circuits.

Data Table SC25896Q_CN.pdf
Characteristics and advantages Ordering Information Product Application Documents and Resources

Characteristics and advantages

AEC-Q100

ISO 26262 ASIL-B

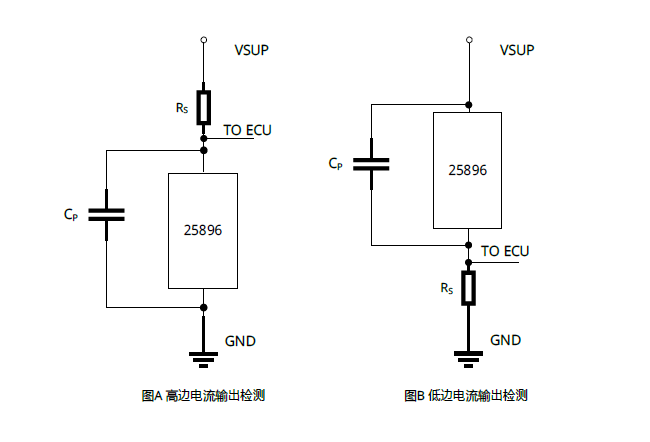

2-wire current-type latch hall
- Two line output interfaces
- Convenient for short-circuit diagnosis

Two low-current states are available for selection(3.3mA / 6mA)

Wide operating voltage range: 4V to 40V

Wide operating temperature range: -40°C to 150°C

Power reverse connection protection: -28V

Integrated CRC verification protection mechanism

Over-temperature protection

Strong anti-interference and electrostatic capabilities

Package:
- TO-92S (UA)
- SOT23-3L(SO)

Ordering Information

Ordering information Mark Low current (mA) High current (mA) Bop(mT) Brp(mT) Package Packing Quantity
SC25896UA-SLC-BK-Q 25896 1.2 14 8.0 -8.0 TO-92S BK 1000/bag

Product Application

Two-Wheeler Motor Commutation

Documents and Resources

Semiment Product Selection Guide 2026 V2.pdf

Selection Guide Download
2025-12-9

SC25896Q_CN.pdf

Datesheet Download
2026-3-20

SC25896-SHC

SC25896 is manufactured using BCD technology. It is a automotive-grade latch-hall sensor with two-wire current output. This product is designed in accordance with the ISO 26262 standard and supports ASIL-B functional safety level. Its low-current operating mode allows selection between 3.3mA and 6mA levels. The two-wire current interface not only saves wiring costs but also facilitates easy diagnosis of short circuits.
