SC60418

SC60418

16 bit High-Speed Inductive Position Sensor

High-Speed, High-Precision, Inductive

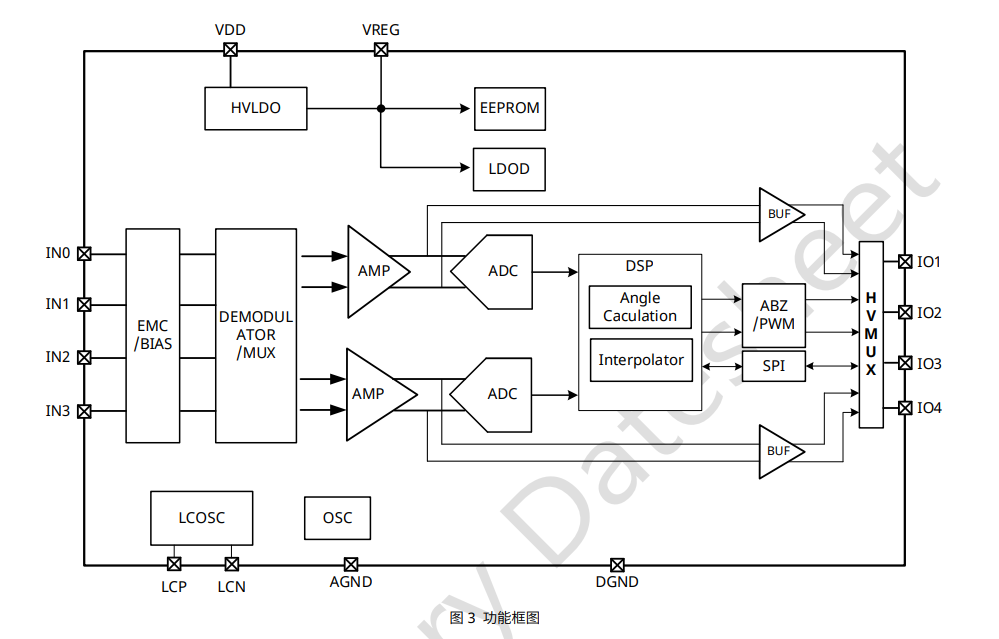

SC6041X is a family of non-contact, high-speed, high-precision inductive position sensor ICs for high-speed absolute position sensing in automotive and industrial applications. Based on the eddy current effect, the IC achieves accurate position measurement by detecting induced voltage variations caused by the displacement of a metal target above a set of coils. SC6041X supports fine-tuning of output signals via programming pins after auto-calibration. With single-cycle coil design, it supports rotation speeds over 600K rpm, ultra-low propagation delay (< 4 μs), and near-zero delay under steady-state motor operation.

Data Table SC60418Q_EN.pdf
SC60418_EN.pdf
Characteristics and advantages Ordering Information Product Application Documents and Resources

Characteristics and advantages

AEC-Q100 Grade 0 automotive qualification

Compliant with ISO26262 functional safety ASIL B

16-bit resolution inductive position sensor IC

Accuracy ≤ ±0.36° electrical angle, up to ≤ 0.05°

Supports maximum rotational speed exceeding 600K rpm

Auto-calibration function supported

Supports multiple output interface options:
- ABZ+PWM(SC60414)
- SPI(SC60418)

User configurable via SPI or single-wire programming interface

Full diagnostic functions: open wire, short circuit, overvoltage, overtemperature, overcurrent, coil open circuit

High reliability design: supply voltage withstand 48 V, output withstand 24 V

Suitable for compact through-shaft mounting structure

Strong electromagnetic interference immunity

Operating temperature range: -40 ℃ to 150 ℃

Package: miniature TSSOP-16, QFN 3×3-16

Ordering Information

Ordering Information Mark Output Option Ambient(℃) Package Pack Amount
SC60418TG-TR-Q 60418 SPI - -40~150 TSSOP16 Tape&Reel 4000Pcs/Reel
SC60418QC-TR-Q 60418 SPI - -40~150 QFN3*3-16 Tape&Reel 5000Pcs/Reel

Product Application

Main Drive Motor

BLDC Motor

Robotic Arm

Electric Power Steering (EPS)

Documents and Resources

Semiment Product Selection Guide 2026 V2.pdf

Selection Guide Download
2025-12-9

SC60418Q_EN.pdf

Datesheet Download
2026-4-29

SC60418_EN.pdf

Datesheet Download
2026-4-29

SC60418

SC6041X is a family of non-contact, high-speed, high-precision inductive position sensor ICs for high-speed absolute position sensing in automotive and industrial applications. Based on the eddy current effect, the IC achieves accurate position measurement by detecting induced voltage variations caused by the displacement of a metal target above a set of coils. SC6041X supports fine-tuning of output signals via programming pins after auto-calibration. With single-cycle coil design, it supports rotation speeds over 600K rpm, ultra-low propagation delay (< 4 μs), and near-zero delay under steady-state motor operation.
