SC60414Q_EN.pdfCharacteristics and advantages
AEC-Q100 Grade 0 automotive qualification
Compliant with ISO26262 functional safety ASIL B

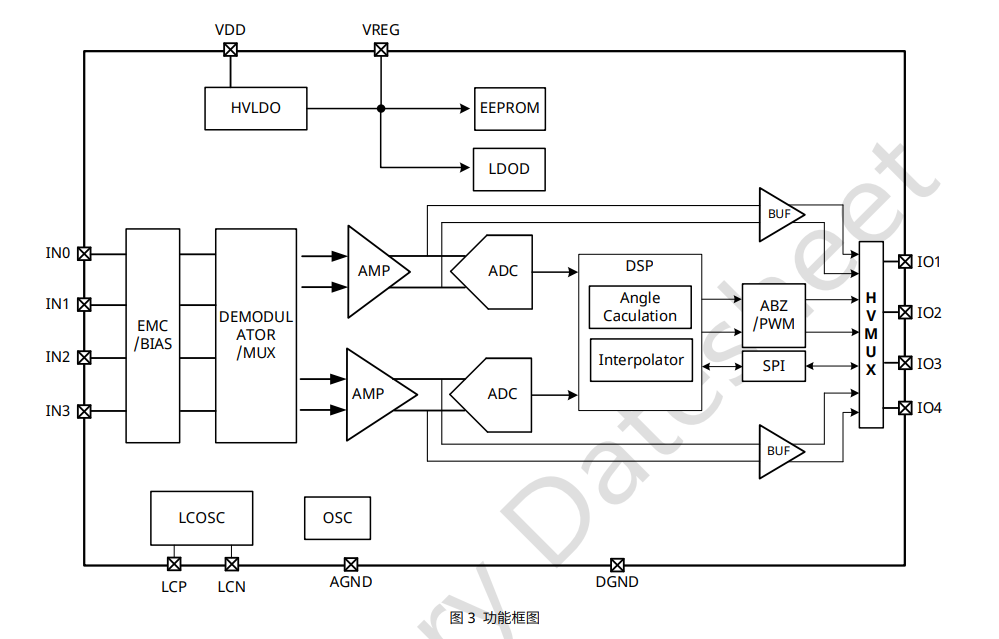

16-bit resolution inductive position sensor IC
Accuracy ≤ ±0.36° electrical angle, up to ≤ 0.05°
Supports maximum rotational speed exceeding 600K rpm
Auto-calibration function supported
Supports multiple output interface options:
- ABZ+PWM(SC60414)
- SPI(SC60418)
User configurable via SPI or single-wire programming interface
Full diagnostic functions: open wire, short circuit, overvoltage, overtemperature, overcurrent, coil open circuit
High reliability design: supply voltage withstand 48 V, output withstand 24 V
Suitable for compact through-shaft mounting structure
Strong electromagnetic interference immunity
Operating temperature range: -40 ℃ to 150 ℃
Package: miniature TSSOP-16, QFN 3×3-16
