Cost-effective Programmable linear output Hall-effect sensor
Angle detection、Overcurrent detection circuit、Low quiescent output voltage and sensitivity temperature drift
SC4616 is specifically engineered for applications including angle detection and DC current detection. The SC4616 provides a client-side calibration solution at no additional cost, and the programmable nature of the SC4616 allows it to compensate for installation errors in current sensing module assembly.
SC4616_EN.pdf
Characteristics and advantages
Rail-to-rail output
Client-side calibration
Sensitivity range: 8mV/Gs~24mV/Gs
Low quiescent output voltage and sensitivity temperature drift
The output voltage and sensitivity vary little with the power supply
Wide ambient temperature range：-40℃~125°C
Resistant to mechanical stress
Undervoltage lockout
Package：TO-92S
Ordering Information
| Order Information | Marking | Ambient, TA(℃) | PKG | Packing | Quantity |
|---|---|---|---|---|---|
| SC4616UA-BK | 4616 | -40~125 | TO-92S | Bulk | 1000/bag |

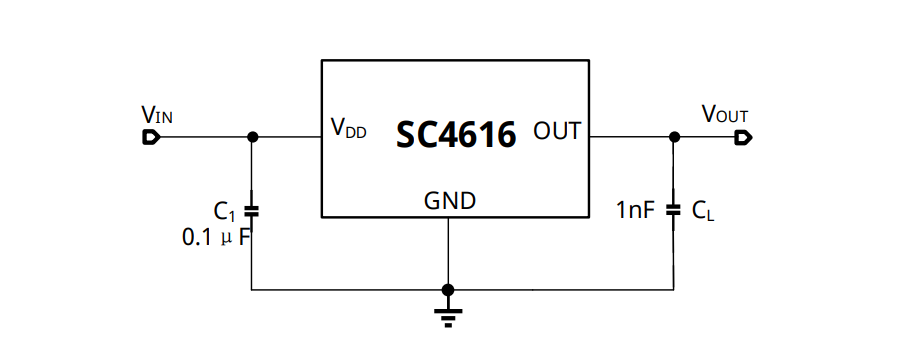

Product Application
Hydraulic Cylinder Stroke Position
SC4616 is specifically engineered for applications including angle detection and DC current detection. The SC4616 provides a client-side calibration solution at no additional cost, and the programmable nature of the SC4616 allows it to compensate for installation errors in current sensing module assembly.
