Unipolar Magnetic Field Response Linear Hall Sensor
Wide Output Range、High-speed Linear Hall
The SC4015 is a linear Hall effect sensor chip whose output voltage is proportional to the supply voltage and the magnetic field strength it senses. The zero-field output voltage (no magnetic field) of the SC4015 is typically 66% of the supply voltage, with a typical sensitivity of 3.9mV/Gs at a 5.0V supply voltage and 2.0mV/Gs at a 3.3V supply voltage. The chip typically operates at 3.3V or 5.0V, with a maximum voltage of 25V. It supports an operating temperature range of -40℃ to 105℃, making it suitable for commercial, consumer, and industrial applications. This product comes in a 3-pin SOT-23-3L package; the package material is lead-free with 100% matte tin frame plating.
SC4015_EN.pdf
Characteristics and advantages
Analog output linear Hall sensor
Unipolar magnetic field response, wide output range
Single current source output
Operating temperature range from -40℃ to 105℃
Fast power-on start < 1us
Low noise output, no output filtering required
SOT23-3L PKG
Ordering Information
| Ordering Information | Sens(mV/Gs) | Ambient, TA(℃) | Package | Packing | Quantity |
|---|---|---|---|---|---|
| SC4015SO-N-TR | 2 | -40-105 | SOT23-3L | TR | 3000/reel |

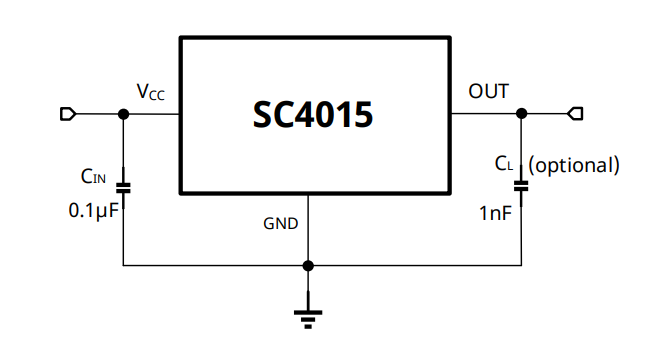

Product Application
Linear Keyboard
Displacement Detection
Washing Machine Drain Pump
The SC4015 is a linear Hall effect sensor chip whose output voltage is proportional to the supply voltage and the magnetic field strength it senses. The zero-field output voltage (no magnetic field) of the SC4015 is typically 66% of the supply voltage, with a typical sensitivity of 3.9mV/Gs at a 5.0V supply voltage and 2.0mV/Gs at a 3.3V supply voltage. The chip typically operates at 3.3V or 5.0V, with a maximum voltage of 25V. It supports an operating temperature range of -40℃ to 105℃, making it suitable for commercial, consumer, and industrial applications. This product comes in a 3-pin SOT-23-3L package; the package material is lead-free with 100% matte tin frame plating.
