Low Power with Sleep Mode Linear Hall Sensor
Low Power、Short Start-Up Time and Wide Supply Voltage Range
SC410X is a low-power linear Hall sensor IC that responds proportionally to magnetic flux density. The quiescent output voltage is 50%*VCC. The device can enter an ultra-low-power shutdown mode by adding a user-selectable sleep mode. This makes these devices ideal for battery-powered applications such as robot vacuums, wireless power tools, and wireless game controllers and peripherals.
SC4101_EN.pdf
Characteristics and advantages
Sine and cosine output signals
Current consumption during sleep mode:<25uA
Magnetic rotation speed up to 80,000 RPM
Supply voltage from 2.5 to 5.5 V
Fast power-on time: < 10us
-40℃ to 105℃ wide ambient temperature range
PKG Type
- DFN1616
- SOT23
- SOT23-3L
Ordering Information
| Ordering Information | Sens(mV/Gs) | Ambient, TA(℃) | Package | Packing | Quantity |
|---|---|---|---|---|---|
| SC4101DN-TR | 1 | -40-105 | DFN1616 | TR | 4000/reel |
| SC4102DN-TR | 1.5 | -40-105 | DFN1616 | TR | 4000/reel |
| SC4103DN-TR | 2.5 | -40-105 | DFN1616 | TR | 4000/reel |
| SC4104DN-TR | 3.2 | -40-105 | DFN1616 | TR | 4000/reel |
| SC4101SO-N-TR | 1 | -40-105 | SOT23-3L | TR | 3000/reel |
| SC4102SO-N-TR | 1.5 | -40-105 | SOT23-3L | TR | 3000/reel |
| SC4103SO-N-TR | 2.5 | -40-105 | SOT23-3L | TR | 3000/reel |
| SC4104SO-N-TR | 3.2 | -40-105 | SOT23-3L | TR | 3000/reel |
| SC4101SE-TR | 1 | -40-105 | SOT23 | TR | 3000/reel |
| SC4102SE-TR | 1.5 | -40-105 | SOT23 | TR | 3000/reel |
| SC4103SE-TR | 2.5 | -40-105 | SOT23 | TR | 3000/reel |
| SC4104SE-TR | 3.2 | -40-105 | SOT23 | TR | 3000/reel |

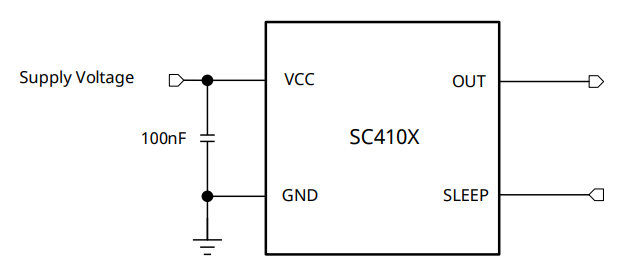

Product Application
SC410X is a low-power linear Hall sensor IC that responds proportionally to magnetic flux density. The quiescent output voltage is 50%*VCC. The device can enter an ultra-low-power shutdown mode by adding a user-selectable sleep mode. This makes these devices ideal for battery-powered applications such as robot vacuums, wireless power tools, and wireless game controllers and peripherals.
